How to tell if an amplifier is powerful enough to drive spea

Post by johntimber » Thu Apr 19, 2018 12:55 am


Ok, I have had a bit of trouble finding the information I need.. how do you tell if an audio amplifier has enough power to drive speakers? In other words, what is the relationship between watts/channel, efficiency in dB of the speakers, and the impedence of the speakers? Hell, what does the efficiency even mean?

Any help will be apprecited.

I didn't find the right solution from the Internet.

Best video studio

Thank you.

Posts: 44
Joined: Wed Apr 04, 2018 8:54 pm
Location: Europe

Post by Harima_San » Sun Apr 22, 2018 3:50 am

By "audio amplifier", I believe that you are speaking about hifi amplifiers.
what does the efficiency even mean?
It's the amount of watts that a speaker will need to deliver a given amount of volume. If a speaker has a sensitivity of 87dB/w, it will say that it will need 1 watt of given power to reach 87dB.

The more sensitivity your speaker has, the less it needs power to reach high volume.

The impendance could be vulgarized by saying "it's the powerfulness of the watts", the lesser an impendance is, the more current it represents. The majority of the speakers on the market are 8 ohms and 4 ohms, what "should" absolutely be not a challenge for any amplifiers on the market.
BUT... the more you are entering hifi territory, the more technical speakers you will find, that will need, sometimes, specific impendances under 4 Ohms (B&W and Infinity are specialists of this way of doing). We call this, in hifi, "critical speakers", because they will require specific powerful amps.

One thing that never is mentionned on brochures of any kind, is the damping factor needed for a speaker to perform. This is the amount of current the speaker cones will need to have the proper grip on their performances. Some speaker can be thirsty of damping factor and will need lots of watts to perform well. BUT... those are not so much on the market and they tend to appear more and more in the top posts of hifi madness. A "normal" speaker should be easy with around 40w to 80w (per channel/ performance given under 8ohms) amps.

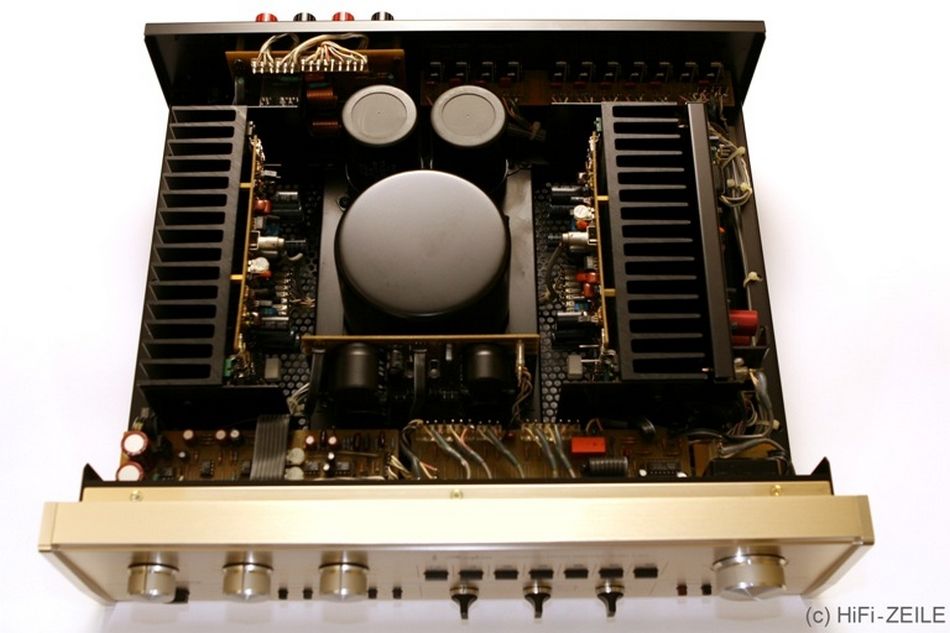

In general, in hifi, you search for speakers that are working well in your room regarding your given budget. Because every speaker will behave differently in a given room. When you found that, then you search a matching amplifier ; in general, honest hifi sellers will recommend you their best ponies for this or that speaker type. PLEASE, DON'T INVEST THOUSANDS IN THE AMPS, there is no reason to do so, unless you are researching some esthetic qualities that those expensive amps have. Other advice, you can go for used amps of the 70's/80's era that are, generally, quite well made. Have a look for models with pcb boards and bulky components, that, often, will be repearable by a skilled radio tech from your city. We could call them "immortal", as long as you invest into regular services all twenty years.
