PostPosted: Fri May 01, 2015 8:58 am    Post subject: Goldstar Body Restoration Reply with quote

Hi , i thought id document the restoration of this 84-85 ish body recently purchased on flea bay, its had a hard life by the look of it, i plan to strip the current grey finish and refinish Blue, also route out the hacked neck pickup area , glue in new wood and re route to original shape,

Blunt chisel was here

and here

Ive removed the painted over code area

to reveal

Looks like like a metallic Blue , can anybody confirm that MB is Metallic Blue? Im not keen on metalics so im thinking of Sonic Blue to keep it Blue based, ive got most parts but need a Bridge , il update when time allows


Last edited by beetleing on Mon May 04, 2015 10:59 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail
iainblack
Guitar God


Joined: 27 Mar 2002
Posts: 801
Location: Liverpool

PostPosted: Sat May 02, 2015 5:29 am    Post subject: Reply with quote

Yep this is metallic blue. Look at the free link to my book below and you will see the photo of the code on mine. Good luck with the restoration

Iain
_________________
Please check out my Tokai Strat Book: http://www.blurb.co.uk/my/book/detail/2060524
Back to top
View user's profile Send private message Visit poster's website
beetleing
Guitar God


Joined: 01 Jan 2015
Posts: 55
Location: London, England,

PostPosted: Mon May 04, 2015 11:00 am    Post subject: Reply with quote

Started to strip the old paint tonight, hot air gun didnt do a lot of good so used a blowtorch on low setting, this uncovered the previous burns from the previous re finish

Most of the paint came off with no wood burns from me anyway

The the orbital sander starting with 240 grit

then 320grit

And thats where i am with it this Bank Holiday in sunny essex,
next a little more sanding with 400 grit then out with the Router.
Back to top
View user's profile Send private message Send e-mail
funkilius
Guitar God


Joined: 13 Oct 2012
Posts: 193
Location: Ireland

PostPosted: Tue May 05, 2015 5:44 am    Post subject: Reply with quote

Just a thought....Probably better to do all the routing,chiselling etc first and then proceed with sanding.............if you are putting on a colour finish (blue?) you need not overdo the sanding yet....as you will maybe need a grain fill,followed by primer,undercoats and then finish coats.(sandings in between of course)..........primers and undercoats can be tinted to match finish colour..........

best of luck....
_________________
I wish I could play like that !!!!!
Back to top
View user's profile Send private message
beetleing
Guitar God


Joined: 01 Jan 2015
Posts: 55
Location: London, England,

PostPosted: Tue May 05, 2015 12:27 pm    Post subject: Reply with quote

funkilius wrote:
Just a thought....Probably better to do all the routing,chiselling etc first and then proceed with sanding.............if you are putting on a colour finish (blue?) you need not overdo the sanding yet....as you will maybe need a grain fill,followed by primer,undercoats and then finish coats.(sandings in between of course)..........primers and undercoats can be tinted to match finish colour..........

best of luck....


Yes thanks for that , you do have to think in advance all the time, cheers
Back to top
View user's profile Send private message Send e-mail
beetleing
Guitar God


Joined: 01 Jan 2015
Posts: 55
Location: London, England,

PostPosted: Sat May 09, 2015 1:23 pm    Post subject: Reply with quote

Routed some clean edges today for the new wood block inserts


Glued and clamped overnight using Titebond

il sand grain fill and apply sanding sealer next time.
Back to top
View user's profile Send private message Send e-mail
felixcatus
Guitar God


Joined: 03 Nov 2010
Posts: 1199
Location: Antwerp, Belgium

PostPosted: Sun May 10, 2015 1:37 pm    Post subject: Reply with quote

Nice thread to follow, love the restoration photos.
Back to top
View user's profile Send private message
JVsearch
Guitar God


Joined: 01 Jan 2009
Posts: 2017
Location: Australia

PostPosted: Sun May 10, 2015 7:09 pm    Post subject: Reply with quote

felixcatus wrote:
Nice thread to follow, love the restoration photos.

Yep, it's great seeing the guitar get fixed up!

Nice work, and great skills.
_________________
Totally biased towards Japanese made guitars.
Back to top
View user's profile Send private message
beetleing
Guitar God


Joined: 01 Jan 2015
Posts: 55
Location: London, England,

PostPosted: Mon May 11, 2015 3:48 am    Post subject: Reply with quote

Thank you both for your interest, its appreciated
Back to top
View user's profile Send private message Send e-mail
beetleing
Guitar God


Joined: 01 Jan 2015
Posts: 55
Location: London, England,

PostPosted: Mon May 11, 2015 4:04 am    Post subject: Reply with quote

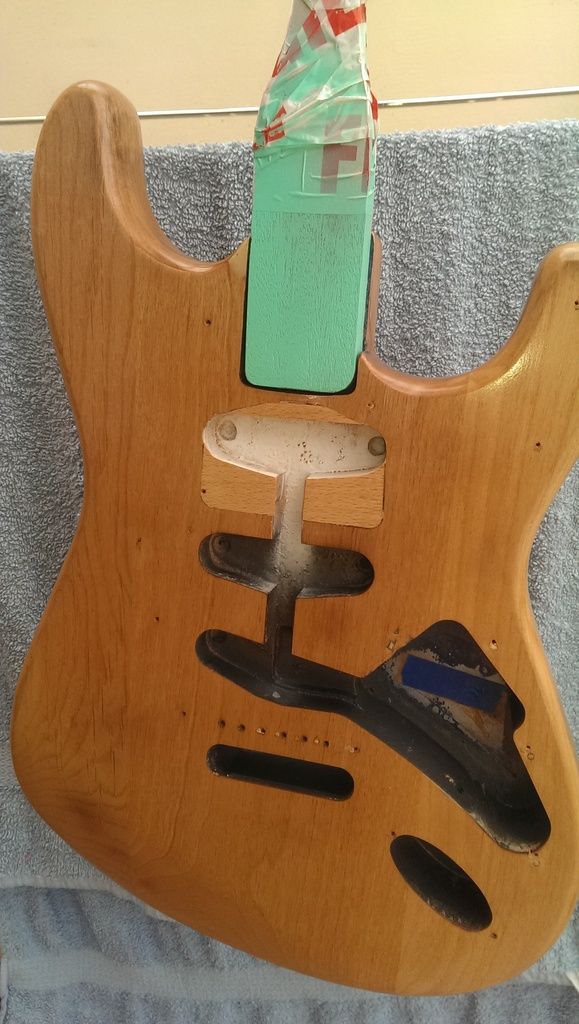

Today i plugged the extra holes with cocktail sticks and used a tiny amount of surface filler ,then applied some grain filler and sanded out , sorry no photos of that part,then i applied 2 coats of nitro cellulose sanding sealer, the wood ( sen Ash?) has taken on a nice amber colour now.il leave overnight to dry and then prep for primer.Ive masked the body codes off to protect from colour coats.I had noticed once i had routed the pickup cavity the surface was a lot smoother than the middle and bridge cavities, the factory seem to laquer over the dust ect and this leaves small bits under the surface , so to replicate this i used some sawdust and spinkled this in the cavity before i laquered .
Back to top
View user's profile Send private message Send e-mail
beetleing
Guitar God


Joined: 01 Jan 2015
Posts: 55
Location: London, England,

PostPosted: Mon May 11, 2015 11:14 am    Post subject: Reply with quote

Applied the first primer coat today


you can see the sawdust crumbs ive added to the neck pickup cavity

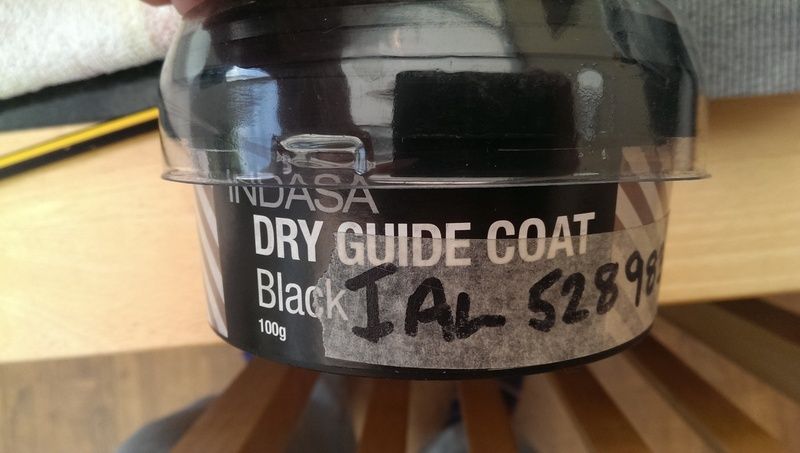

just a little filling to do then il apply a Black guide coat which is an automotive product, a dry powder is applied to the white , then when you wet and dry this off any low spots will show as black.
Back to top
View user's profile Send private message Send e-mail
Suki
Guitar God


Joined: 22 Feb 2013
Posts: 319
Location: London, United Kingdom

PostPosted: Mon May 11, 2015 12:02 pm    Post subject: Reply with quote

I love restoration threads like this.

A very tidy job on the routing and prep! Nicely done! ANd nice to see it closer to its former glory after the pickup butchering.

I find the foam polishing pads from companies like Maguires (used for automotive detailing) along with T-cut are very good for bringing the nitro shine up after the fine wet n dry.

What are your plans after the body is done?
Back to top
View user's profile Send private message
beetleing
Guitar God


Joined: 01 Jan 2015
Posts: 55
Location: London, England,

PostPosted: Mon May 11, 2015 12:10 pm    Post subject: Reply with quote

Hi thank you,Ive got a Goldstar Rosewood neck , a set of V11 pickups and tokai switch and tokai hardware inc final prospec saddles and also a set of Fender 54 Custom shop pickups, as ive got another Goldie with V11s i may try out the 54s to sound them out alongside each other, i like the idea of those polishing pads ,ive got a full size automotive electric mop but its like a sledghammer to crack a nut.
Back to top
View user's profile Send private message Send e-mail
iainblack
Guitar God


Joined: 27 Mar 2002
Posts: 801
Location: Liverpool

PostPosted: Mon May 11, 2015 4:37 pm    Post subject: Reply with quote

Are you going for a metallic blue finish?
_________________
Please check out my Tokai Strat Book: http://www.blurb.co.uk/my/book/detail/2060524
Back to top
View user's profile Send private message Visit poster's website
beetleing
Guitar God


Joined: 01 Jan 2015
Posts: 55
Location: London, England,

PostPosted: Mon May 11, 2015 11:59 pm    Post subject: Reply with quote

iainblack wrote:
Are you going for a metallic blue finish?

Hi iain, im going with sonic blue i think at the moment,il do some tests on some scrap wood before i decide though.
